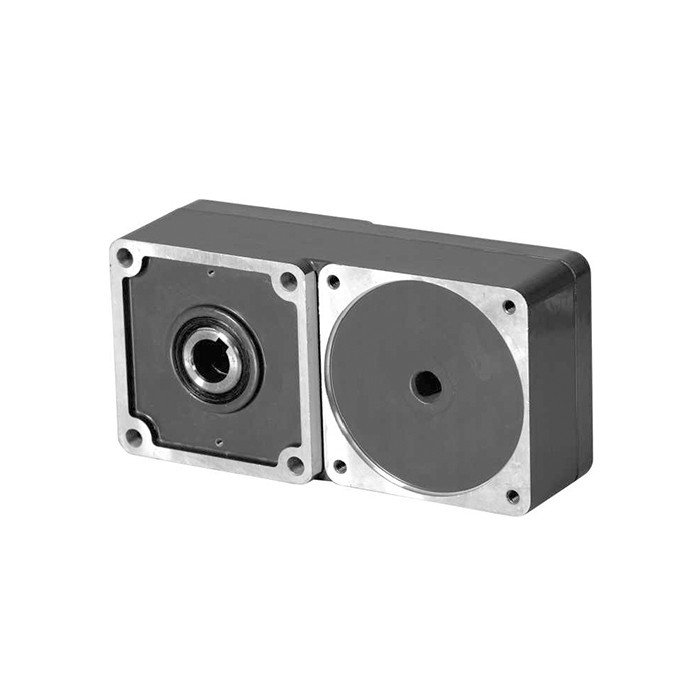

80mm 3 Stage Spur Gear Gearbox 80CJB250K
80mm Spur Gearbox, Permissible Load Range: 25N.m
Product details
Bearing at output | Ball bearings |
Max. Radial load（10mm from flange） | ≤1500N |
Max. shaft axial load | ≤600N |
Radial play of shaft （near to flange） | ≤0.08mm |
Axial play of shaft | ≤0.4mm |
Backlash at no-load | ≤1.5° |
Shaft press fit force, max | ≤2000N |

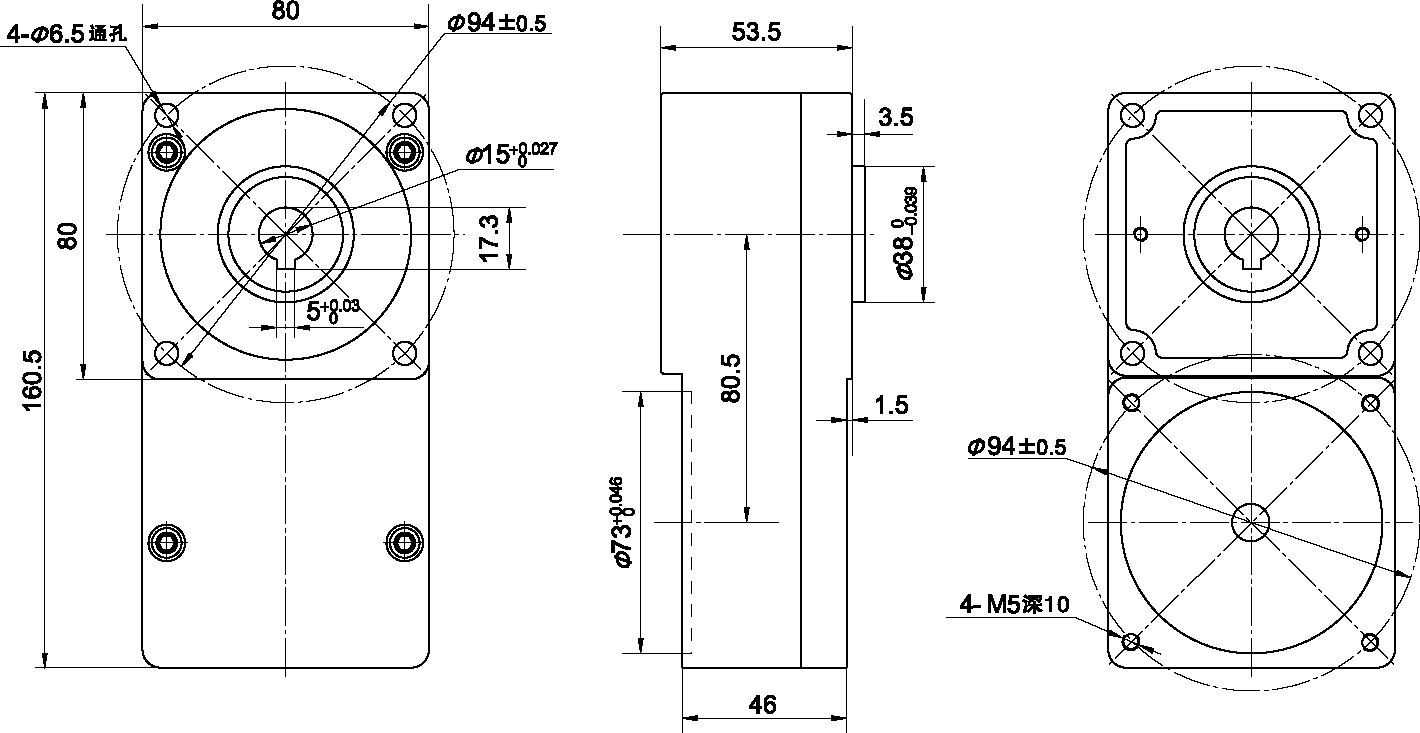

Dimensions
Parameter | Stage3 |
Transmission efficiency | 73% |
Rated tolerance torque | 25N.m |
Input and output direction | Reverse direction |
Max momentary tolerance torque | Two times of the rated torque |
Operating temperature | -10℃~+80℃ |
Operating ambient humidity | 20% ~85%RH |
Recommend input speed | ≤3000rpm |
